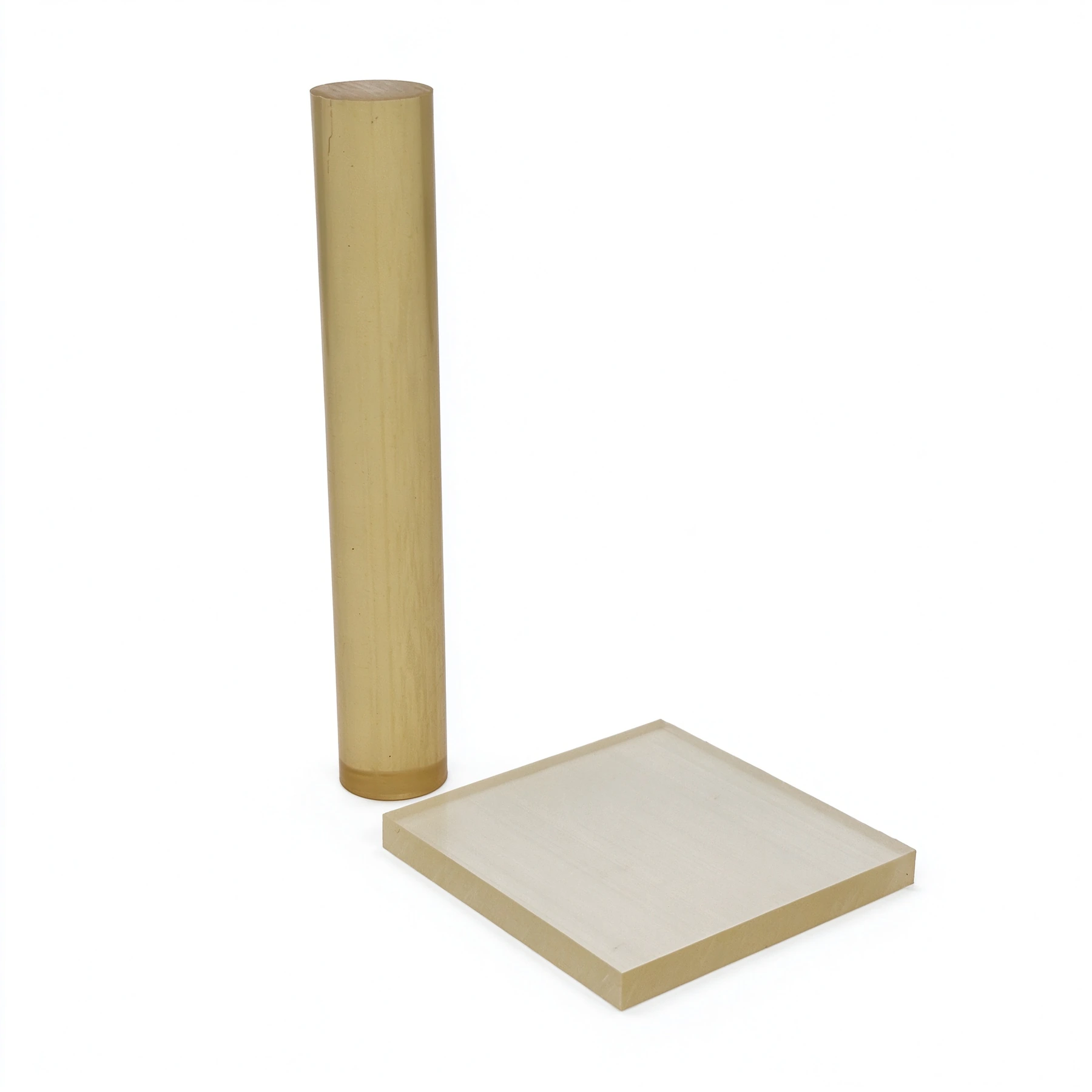

PSU stock — view 01
PSU
Polysulfone is a transparent amber engineering plastic used for heat-resistant parts that may require repeated steam sterilization.
Define the service and cleaning conditions together
For a PSU component, discuss the operating temperature, cleaning conditions and any repeated sterilization requirement with Aria. We help you review the grade and geometry against those conditions. Any required compliance documentation or acceptance test must be stated for the particular part, not inferred from the polymer name.
Material photos

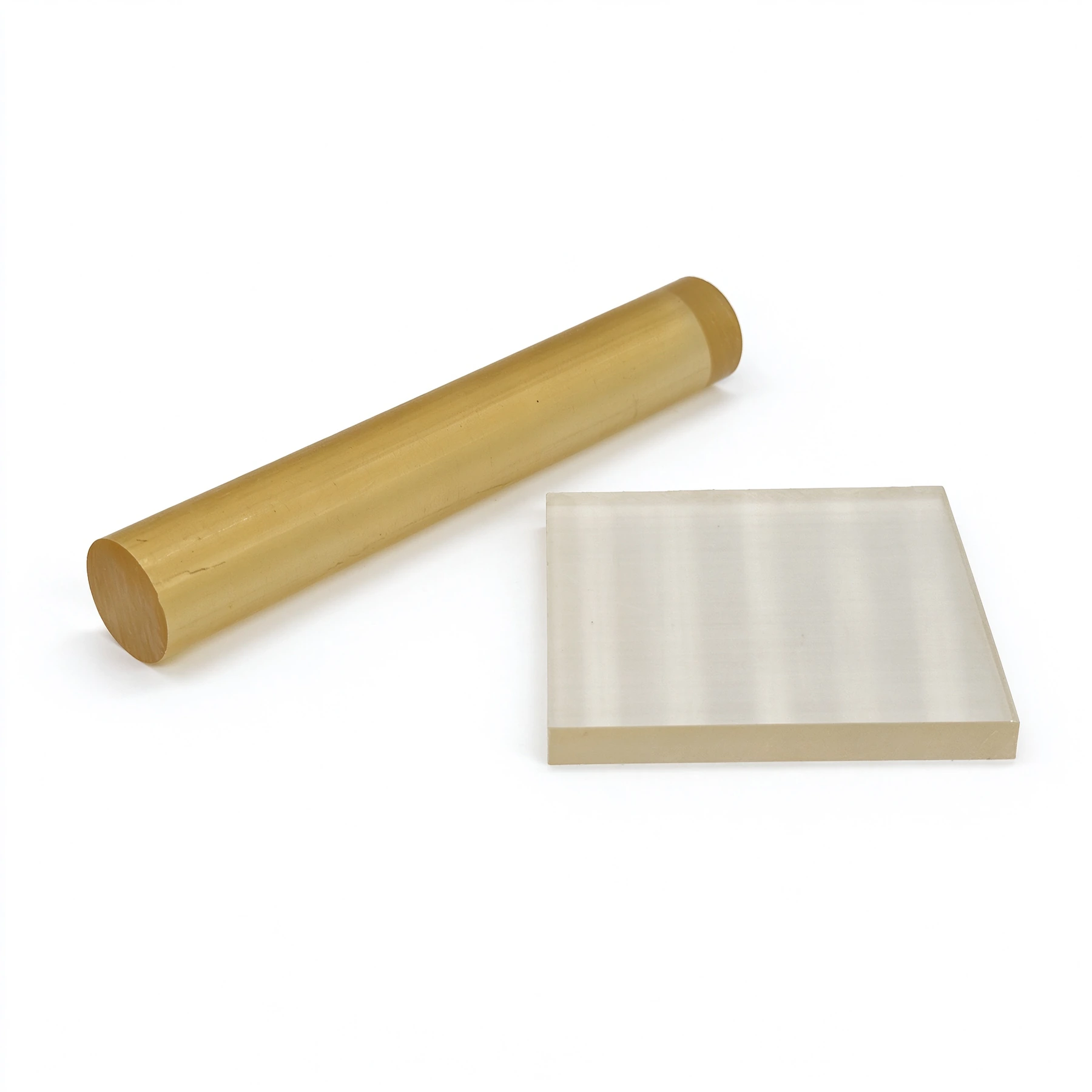

PSU stock — view 02

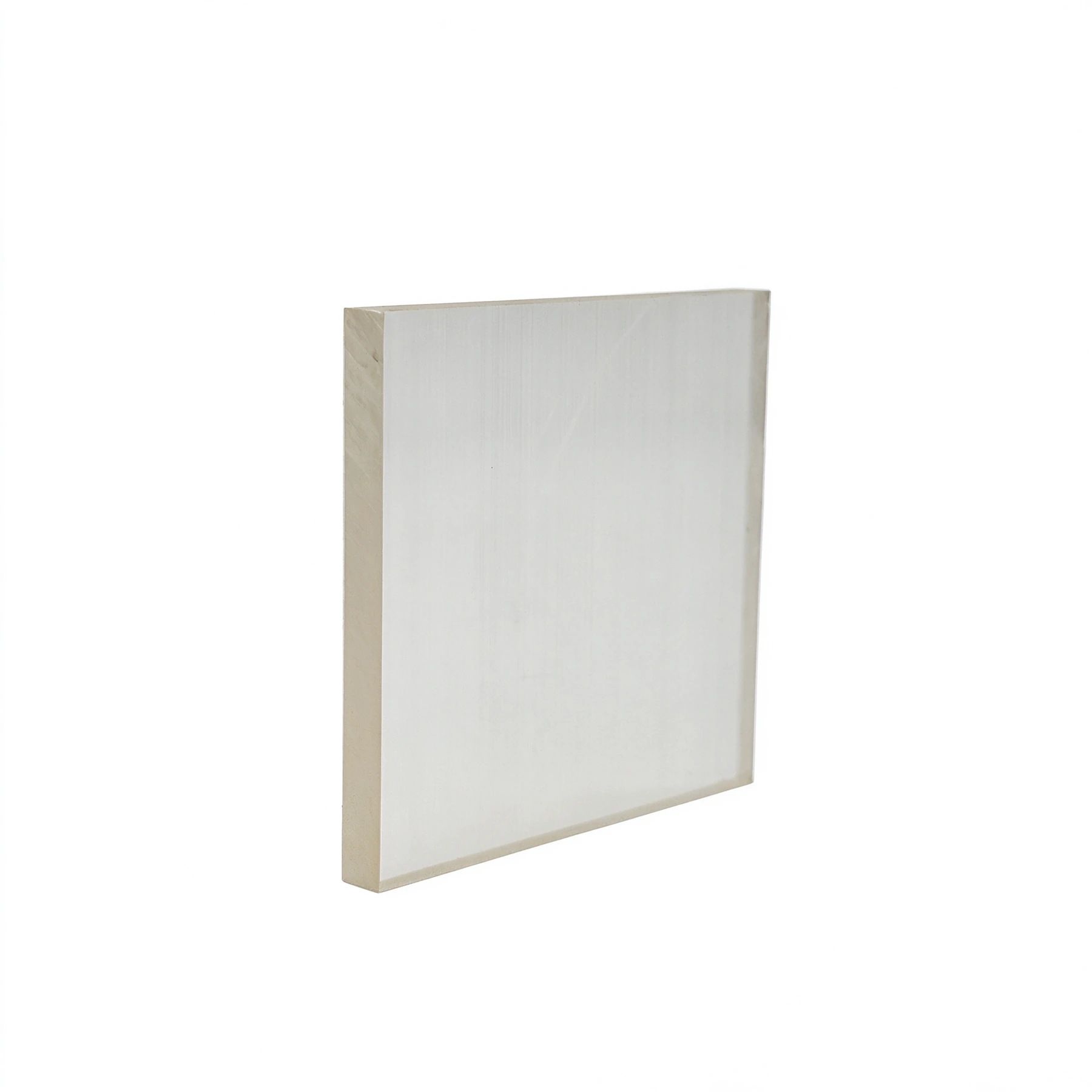

PSU stock — view 04

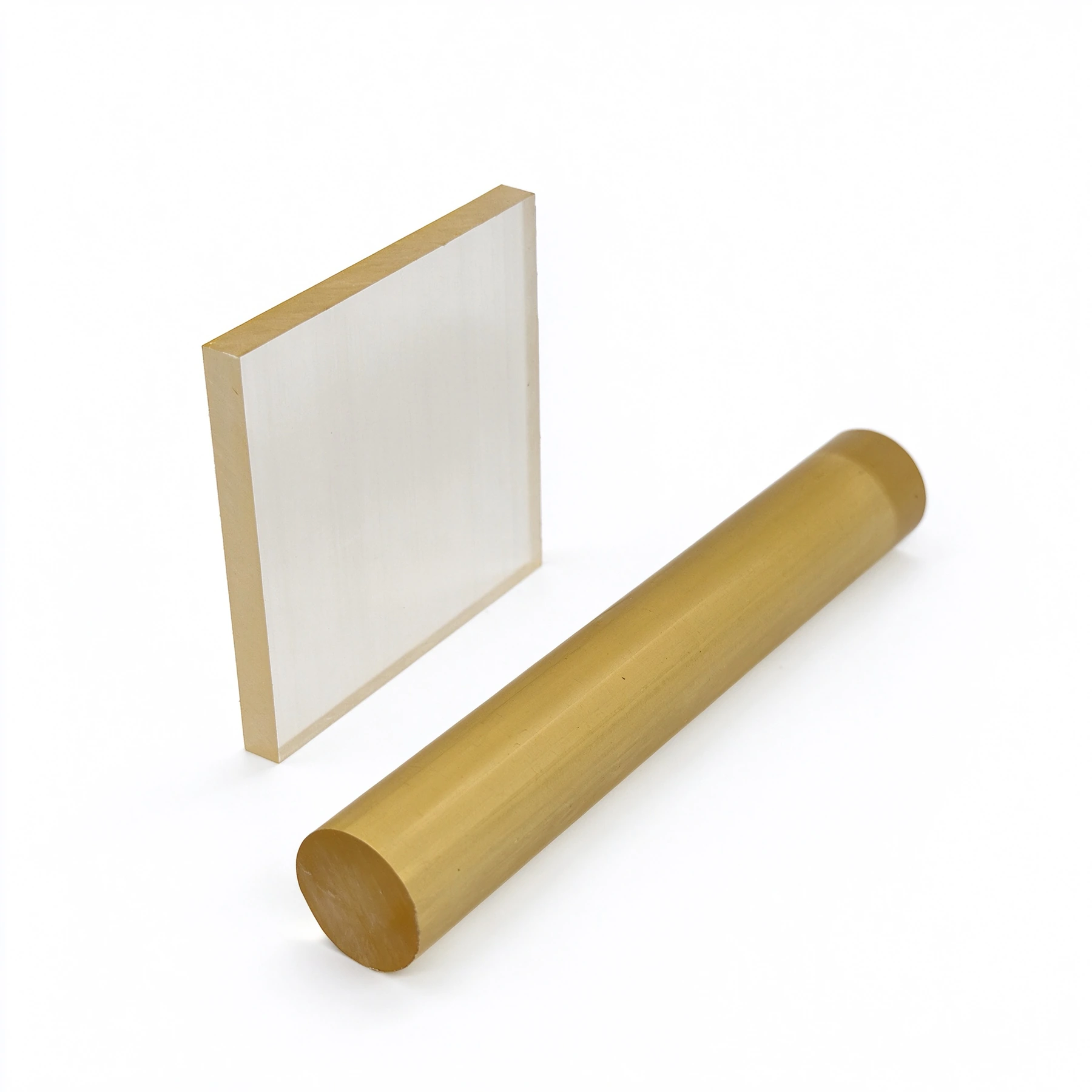

PSU stock — view 05

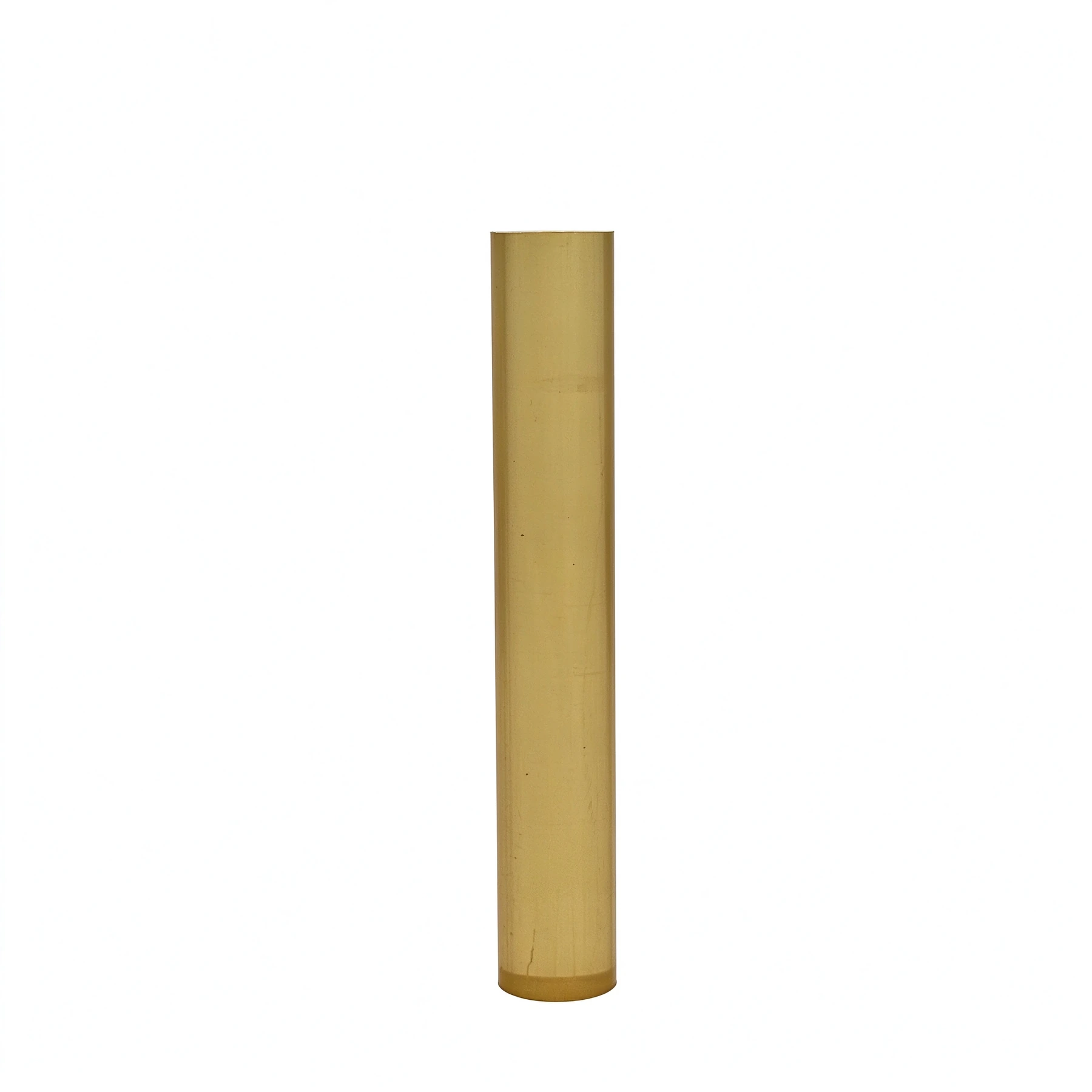

PSU stock — view 06
Material options
| Property | Details |
|---|---|
| Colors | Transparent amber, Custom colors |
| Special properties | Glass-filled and specifically approved food- or medical-contact grades require separate selection. |
Detailed values describe Udel P-1700, PSU (2023-09-29). Family ranges are broader selection references and may include different grades or reinforcement levels. Confirm the selected grade, condition and test method for your part.
Material properties
| Property | Metric | Imperial | Test method / conditions |
|---|---|---|---|
| Density | 1.24 g/cm³ | 0.0448 lb/in³ | ASTM D792 · 23°C · Reference: Udel P-1700, PSU (2023-09-29) |
| Melt Flow Rate | 6.5 g/10min | 6.5 g/10min | ASTM D1238 · 343°C, 2.16 kg · Reference: Udel P-1700, PSU (2023-09-29) |
| Molding Shrinkage | 0.70 % | 0.70 % | ASTM D955 · Flow direction · Reference: Udel P-1700, PSU (2023-09-29) |
| Water Absorption (24 hr) | 0.30 % | 0.30 % | ASTM D570 · 24h · Reference: Udel P-1700, PSU (2023-09-29) |
| Tensile Modulus | 2,480 MPa | 360,000 psi | ASTM D638 · 23°C · Reference: Udel P-1700, PSU (2023-09-29) |
| Tensile Strength | 70.3 MPa | 10,200 psi | ASTM D638 · 23°C · Reference: Udel P-1700, PSU (2023-09-29) |
| Tensile Elongation at Break | 50~100 % | 50~100 % | ASTM D638 · 23°C · Reference: Udel P-1700, PSU (2023-09-29) |
| Flexural Modulus | 2,690 MPa | 390,000 psi | ASTM D790 · 23°C · Reference: Udel P-1700, PSU (2023-09-29) |
| Flexural Strength | 106 MPa | 15,400 psi | ASTM D790 · 23°C · Reference: Udel P-1700, PSU (2023-09-29) |
| Notched Izod | 69 J/m | 1.3 ft·lb/in | ASTM D256 · 23°C · Reference: Udel P-1700, PSU (2023-09-29) |
| HDT (1.80 MPa) | 174 °C | 345 °F | ASTM D648 · 1.80 MPa, unannealed · Reference: Udel P-1700, PSU (2023-09-29) |
| Max. Continuous Use Temp. | 149 °C | 300 °F | Reference: Udel P-1700, PSU (2023-09-29) |
Material family ranges — selection reference
| Property | Family reference |
|---|---|
| Material class | High-performance plastic |
| Density (g/cm³) | 1.24–1.25 |
| Tensile strength (MPa) | 70–75 |
| Elongation at break (%) | 25–100 |
| Elastic modulus (GPa) | 2.5–2.7 |
| Hardness | M69–M85 |
| Temperature reference (°C) | HDT 170–180 |
Compatible manufacturing processes
Selection requirements
- CNC Milling Services · Injection molding · Precision CNC machining · CNC turning
Injection molding, CNC milling and turning, extrusion and thermoforming. Dry thoroughly; the supplied processing reference is at least 150°C. Qualify adhesives and cleaning agents to prevent stress cracking. Confirm drying, outdoor stabilization and the applicable ASTM or ISO test method.
Advantages and considerations
Advantages
Good hydrolysis resistance, stiffness and dimensional stability; useful electrical and radiation performance. Supplied references give continuous service around 149°C.
Material limitations
Ketones, chlorinated and aromatic solvents can cause attack or stress cracking. Unmodified grades need UV protection outdoors.
How Aria supports your project
Help choosing a material
Compare materials for the loads, temperature and environment your part will face.
Design feedback before production
We review tool access, geometry and material choice before manufacturing.
Inspection to your drawing
Dimensional checks and inspection reports for the critical features on your drawing.
Compatible surface finishes
Selection requirements
- Painting
Qualify adhesives and cleaning agents to prevent stress cracking. Confirm drying, outdoor stabilization and the applicable ASTM or ISO test method. Painting, printing and compatible bonding. Electroplating is generally unsuitable.
Applications
Typical applications
Sterilizable device components, laboratory ware, hot-water and steam parts, electrical parts, membranes and approved food-contact components.
Design considerations
Processing options
Injection molding, CNC milling and turning, extrusion and thermoforming. Dry thoroughly; the supplied processing reference is at least 150°C.
Finishing options
Painting, printing and compatible bonding. Electroplating is generally unsuitable.
Grade and finish combinations
Qualify adhesives and cleaning agents to prevent stress cracking. Confirm drying, outdoor stabilization and the applicable ASTM or ISO test method.
Color and grade options
Natural transparent amber. Opaque and custom colors by grade.
