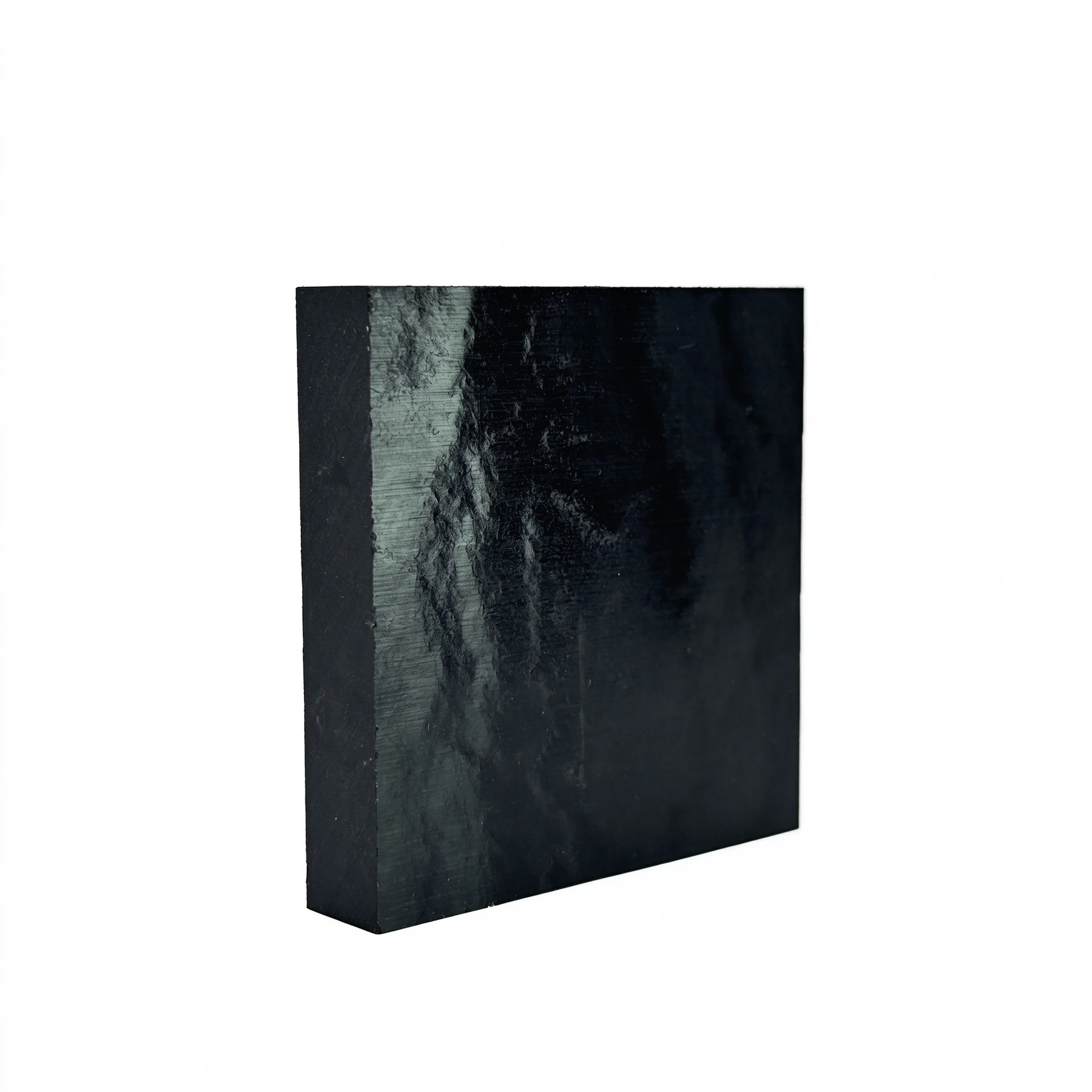

PPA stock — view 01
Keep grade and operating conditions attached to the drawing
A heat-resistant molded part needs more than “PPA” on the material line. Aria helps you discuss the selected grade, reinforcement, working environment and important dimensions together. That keeps the material decision connected to the part you need, rather than applying the property values of one glass-filled grade to every PPA formulation.
Material photos

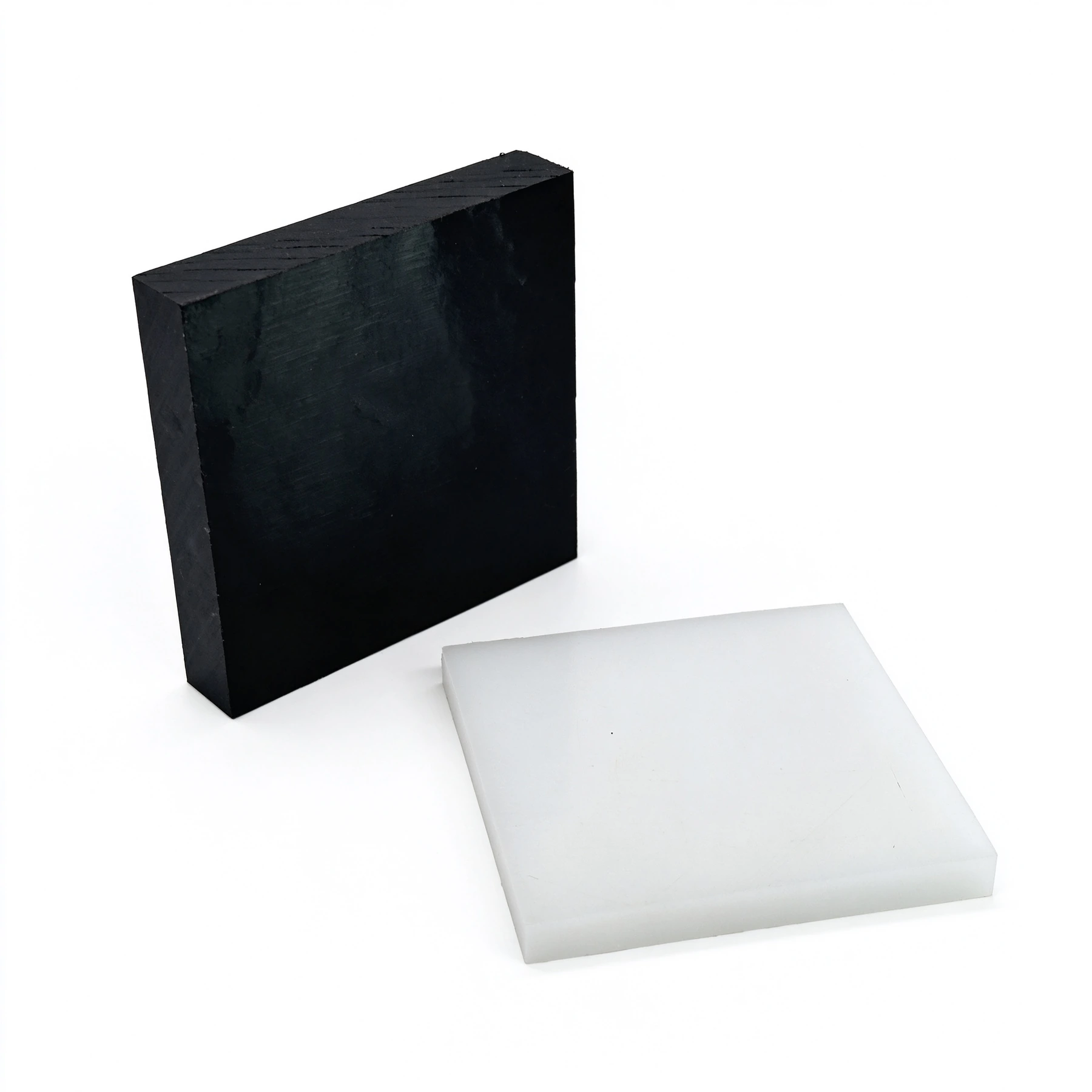

PPA stock — view 02

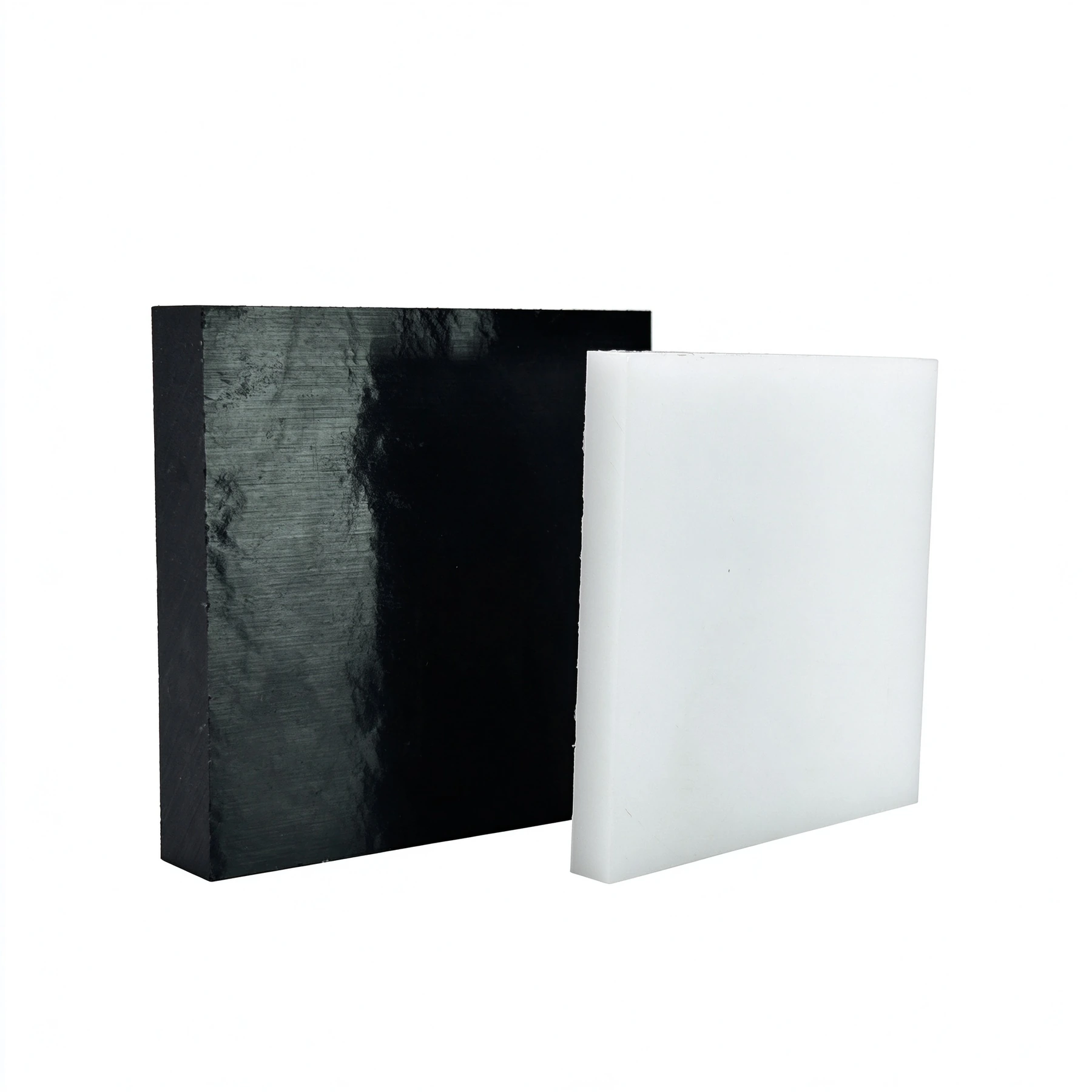

PPA stock — view 03

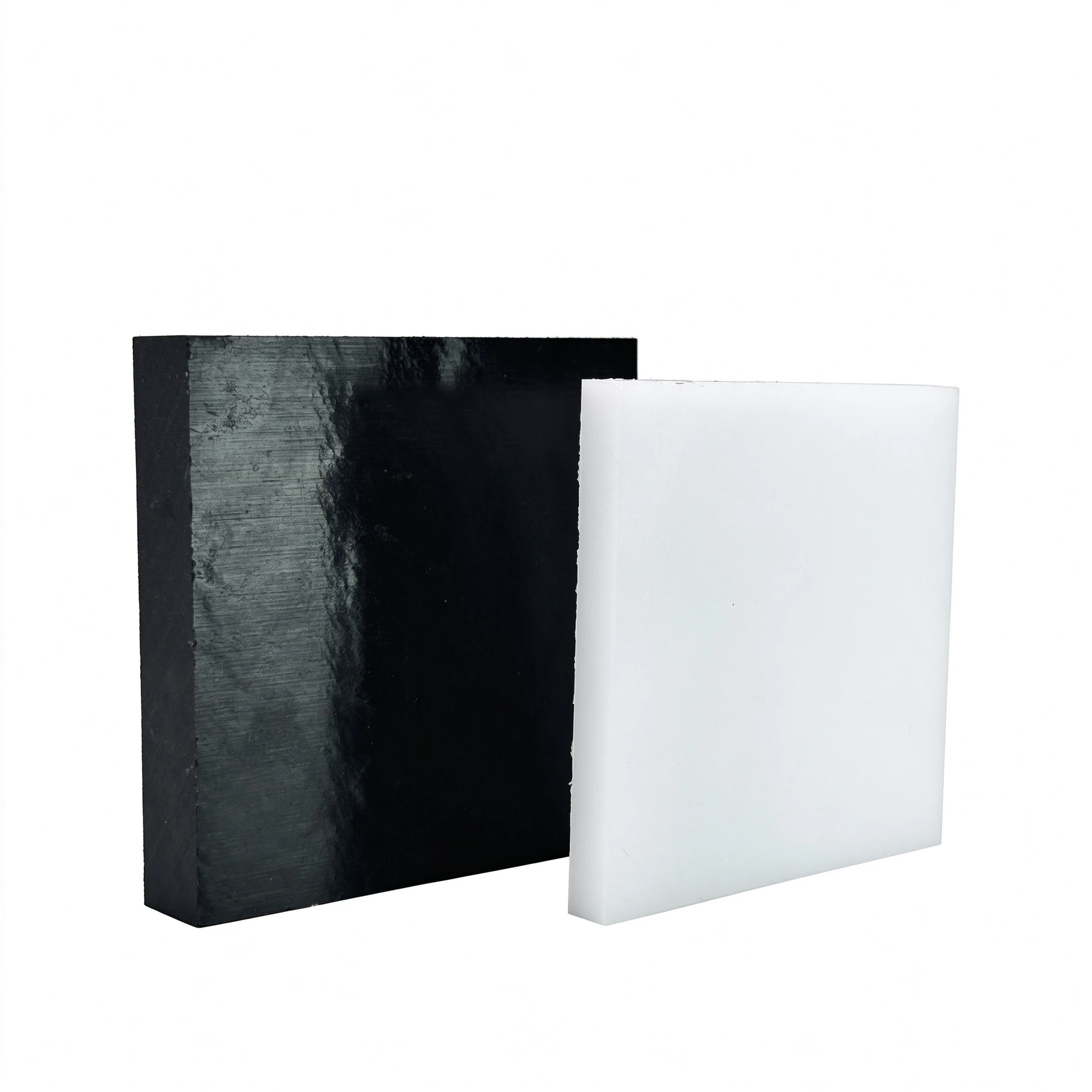

PPA stock — view 04

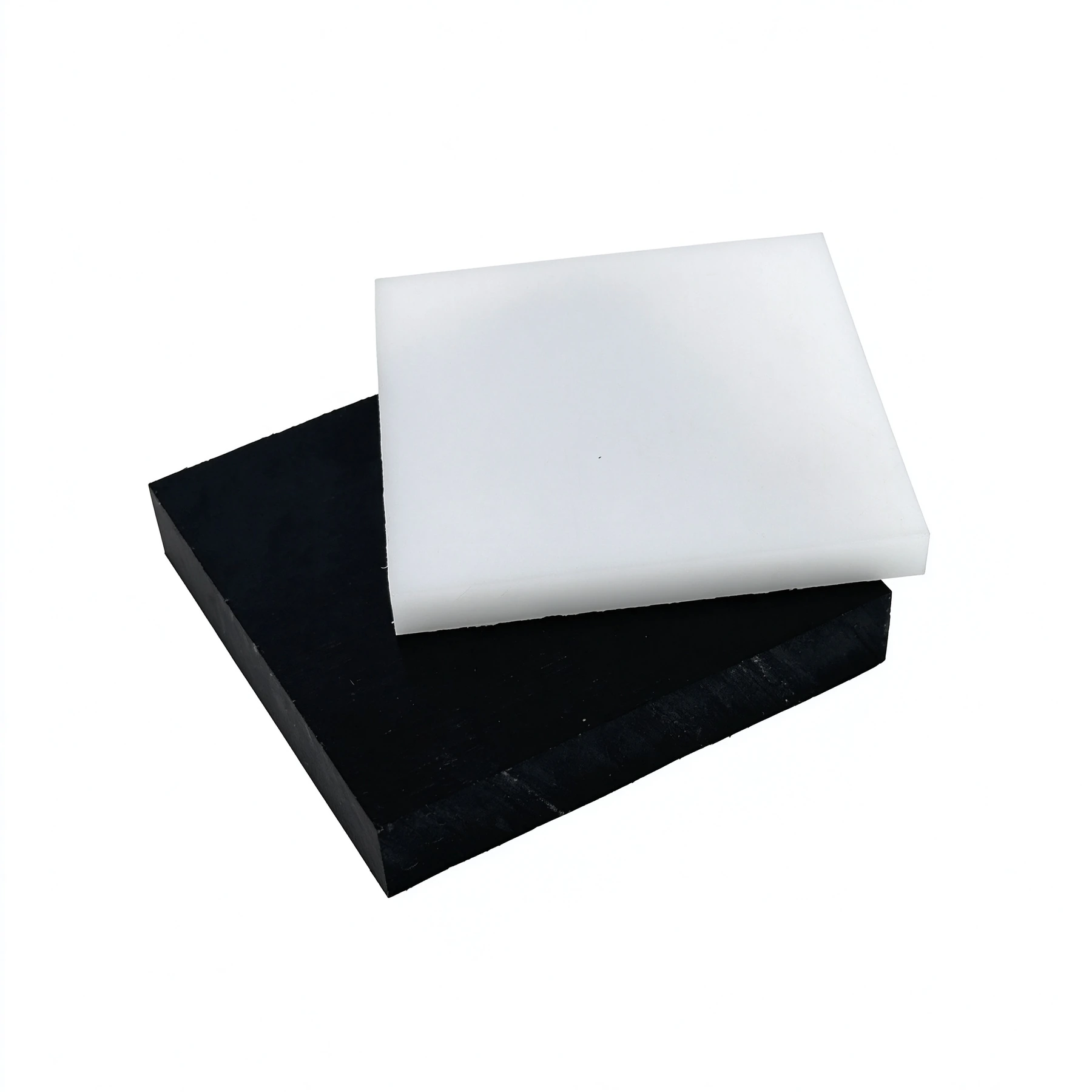

PPA stock — view 05

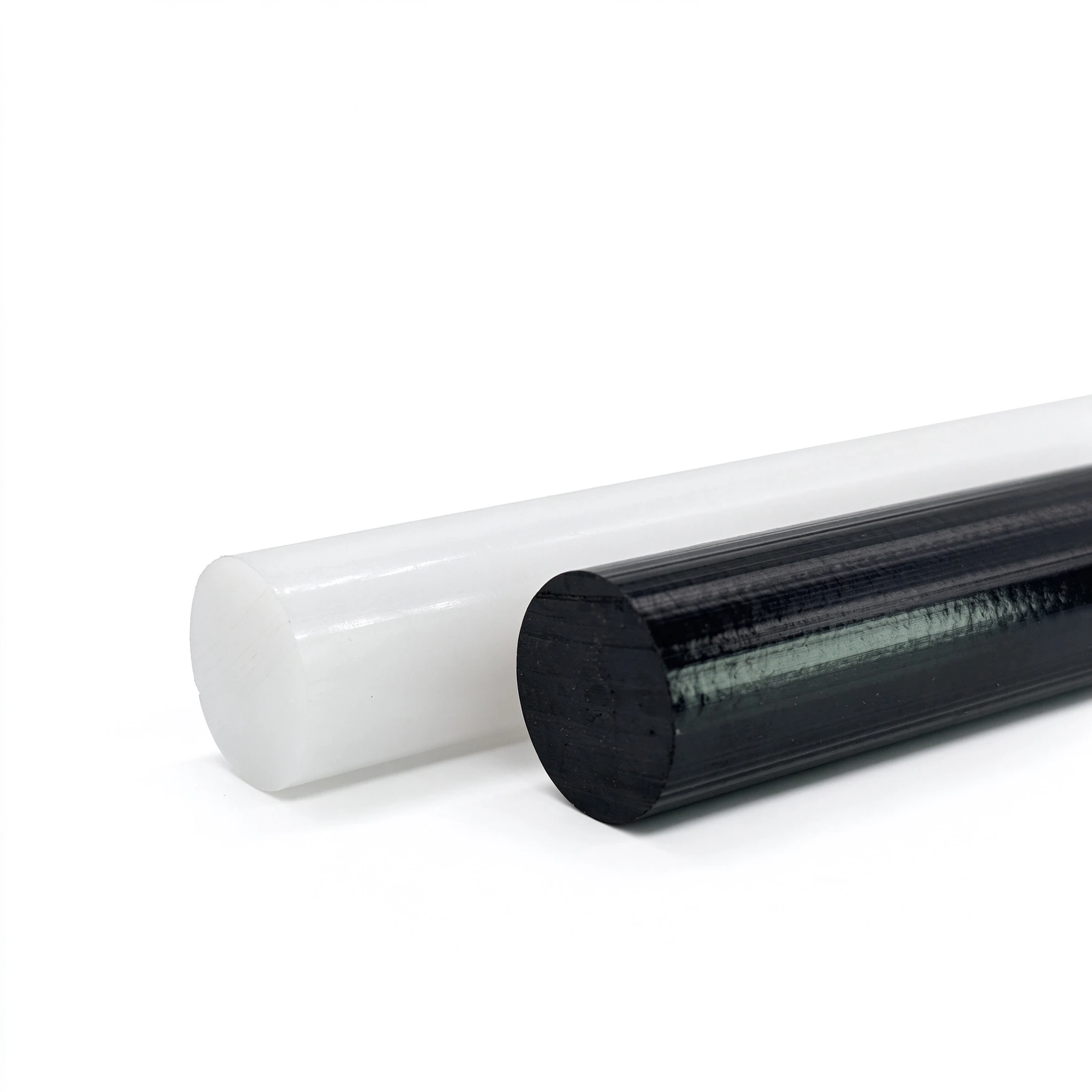

PPA stock — view 06

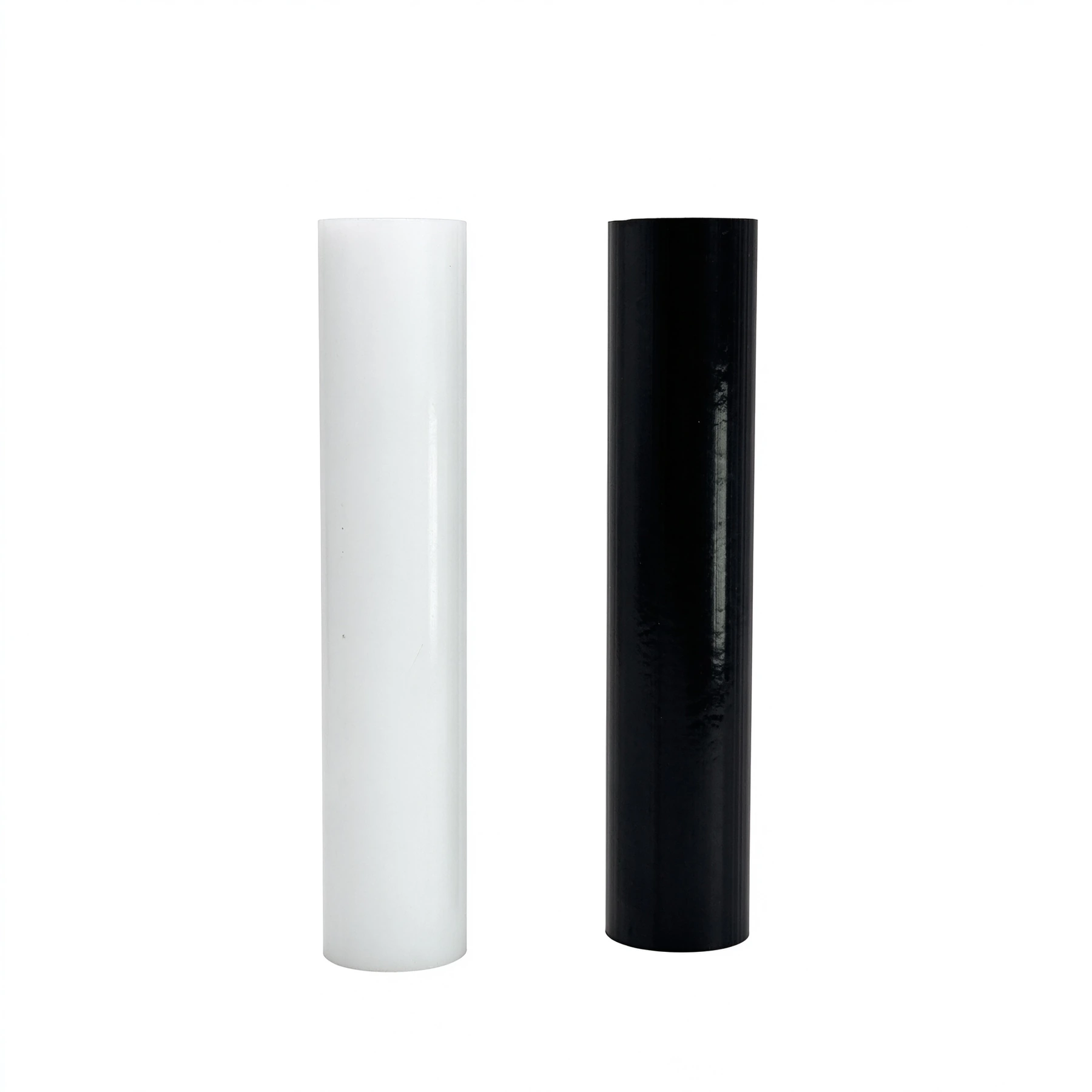

PPA stock — view 07

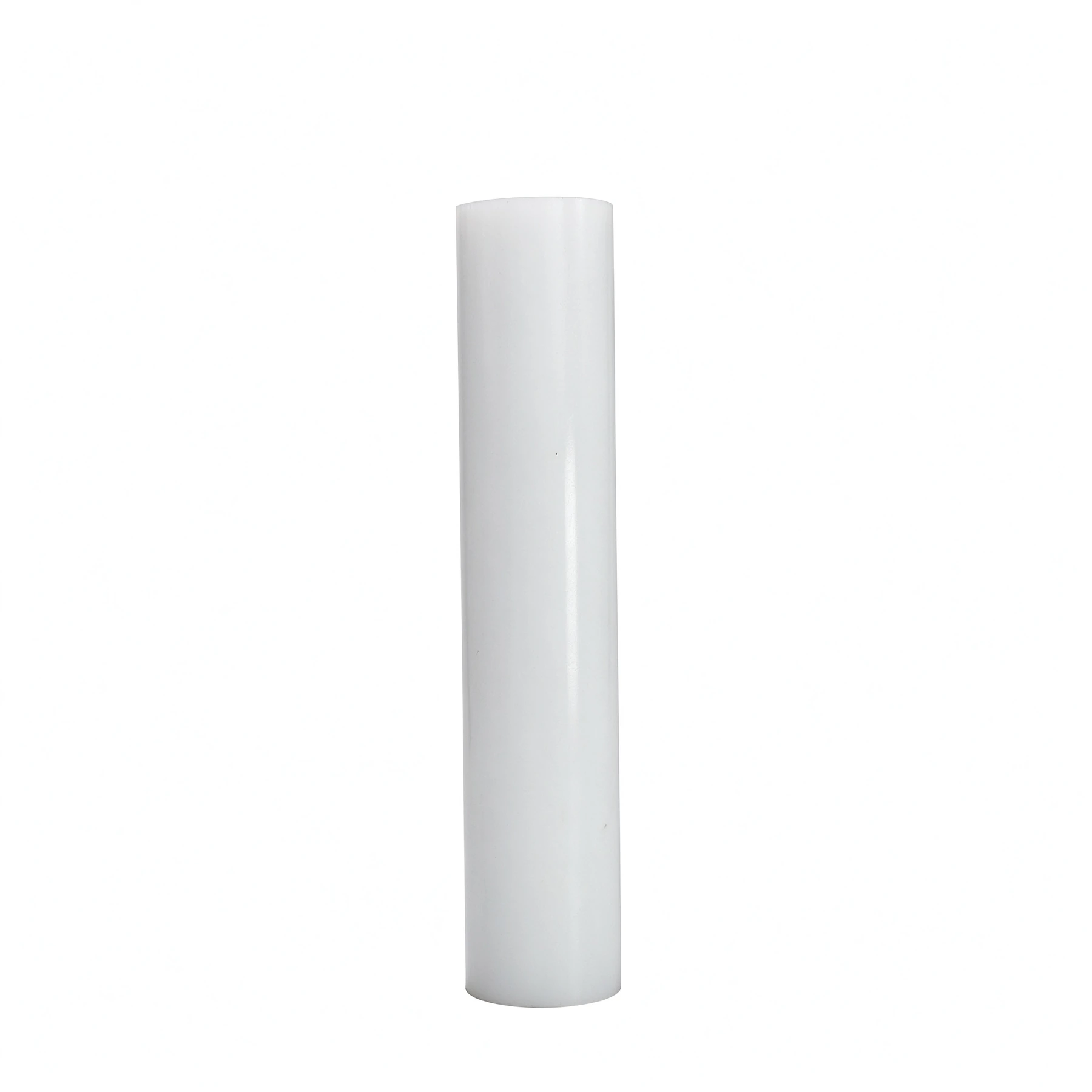

PPA stock — view 08

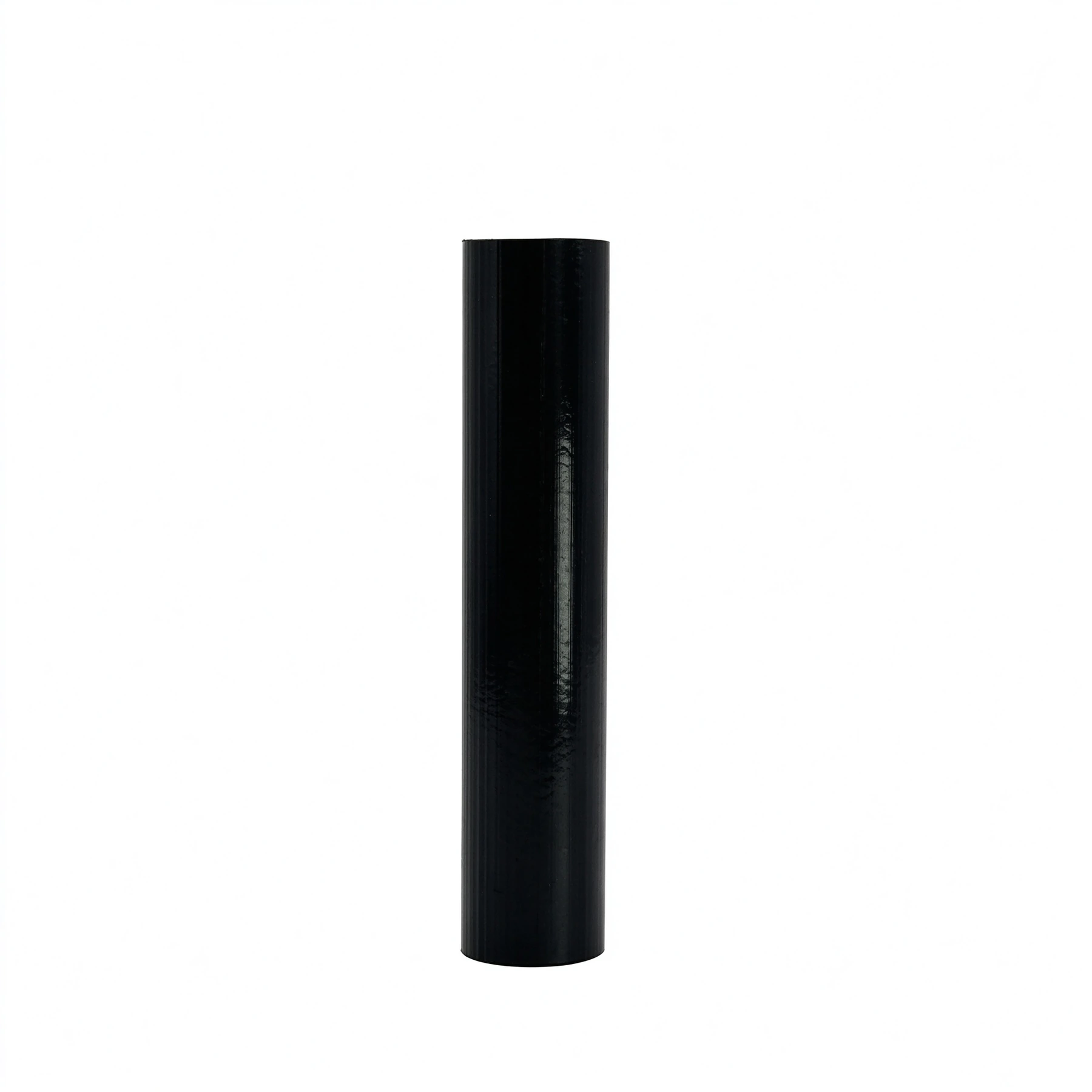

PPA stock — view 09

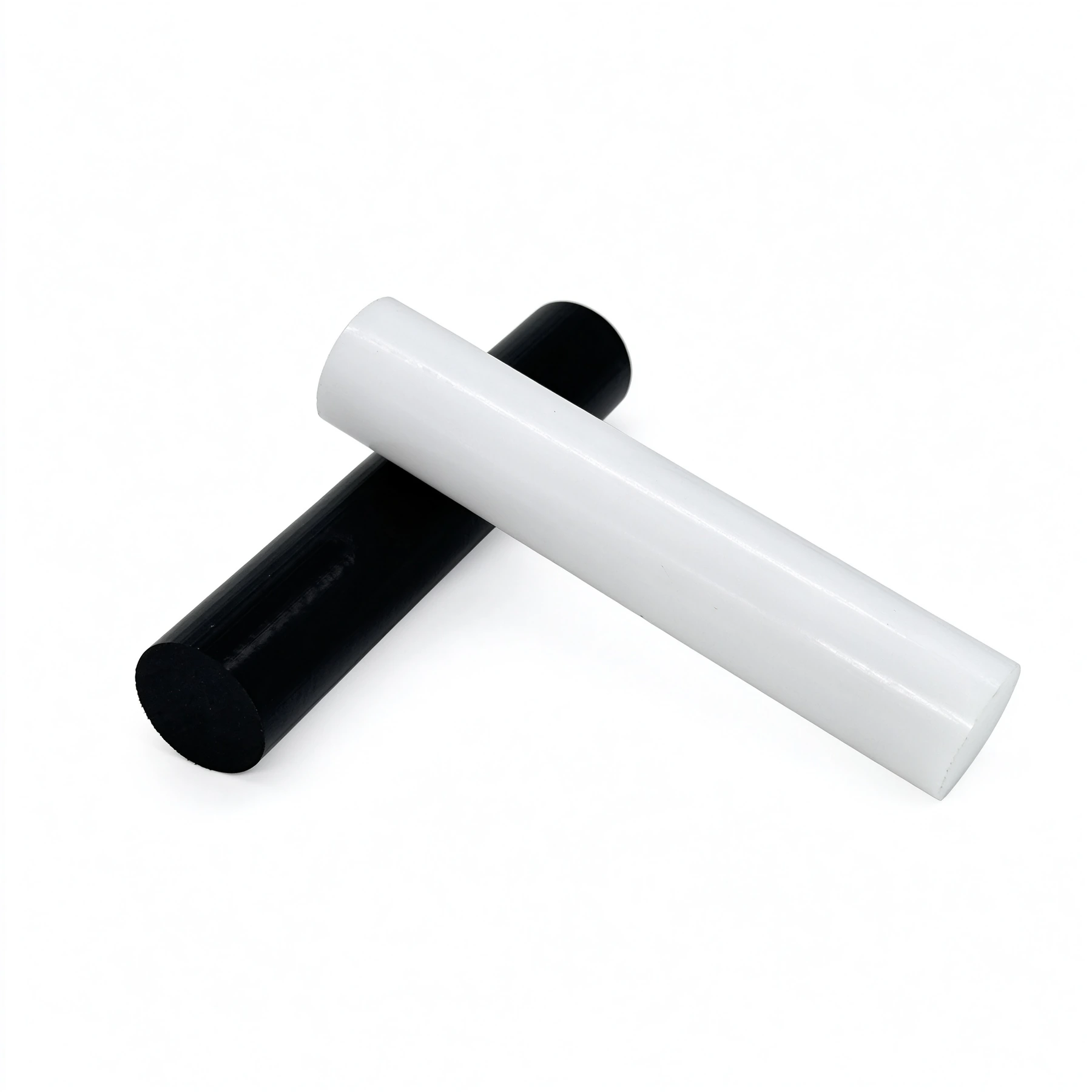

PPA stock — view 10
Material options
| Property | Details |
|---|---|
| Colors | Natural light brown, Black, Custom colors |
| Special properties | Glass/mineral reinforcement, flame retardance, hydrolysis resistance, high flow and laser weldability depend on the grade. |
Detailed values describe Solvay Amodel AS-1133 HS, PPA with 33% glass fiber (2010-11-02). Family ranges are broader selection references and may include different grades or reinforcement levels. Confirm the selected grade, condition and test method for your part.
Material properties
| Property | Metric | Imperial | Test method / conditions |
|---|---|---|---|
| Density | 1.44 g/cm³ | 0.0520 lb/in³ | ISO 1183 · 23°C, 33%GF · Reference: Solvay Amodel AS-1133 HS, PPA with 33% glass fiber (2010-11-02) |
| Molding Shrinkage | 0.4 % | 0.4 % | ASTM D955 · Flow direction · Reference: Solvay Amodel AS-1133 HS, PPA with 33% glass fiber (2010-11-02) |
| Water Absorption (24 hr) | 0.21 % | 0.21 % | ASTM D570 · 24h · Reference: Solvay Amodel AS-1133 HS, PPA with 33% glass fiber (2010-11-02) |
| Tensile Modulus | 12,200 MPa | 1,770,000 psi | ISO 527 · 23°C, dry · Reference: Solvay Amodel AS-1133 HS, PPA with 33% glass fiber (2010-11-02) |
| Tensile Stress at Yield | 225 MPa | 32,600 psi | ISO 527 · Dry · Reference: Solvay Amodel AS-1133 HS, PPA with 33% glass fiber (2010-11-02) |
| Tensile Elongation at Break | 3.0 % | 3.0 % | ISO 527 · Dry · Reference: Solvay Amodel AS-1133 HS, PPA with 33% glass fiber (2010-11-02) |
| Flexural Modulus | 10,300 MPa | 1,490,000 psi | ISO 178 · Dry · Reference: Solvay Amodel AS-1133 HS, PPA with 33% glass fiber (2010-11-02) |
| Flexural Strength | 326 MPa | 47,300 psi | ISO 178 · Dry · Reference: Solvay Amodel AS-1133 HS, PPA with 33% glass fiber (2010-11-02) |
| Compressive Strength | 276 MPa | 40,000 psi | ASTM D695 · Dry · Reference: Solvay Amodel AS-1133 HS, PPA with 33% glass fiber (2010-11-02) |
| Charpy notched impact (23°C) | 10.7 kJ/m² | 5.1 ft·lb/in² | ISO 179/1eA · Dry · Reference: Solvay Amodel AS-1133 HS, PPA with 33% glass fiber (2010-11-02) |
| Rockwell Hardness | R125 (R scale) | R125 (R scale) | ASTM D785 · Reference: Solvay Amodel AS-1133 HS, PPA with 33% glass fiber (2010-11-02) |
| HDT (1.80 MPa) | 277 °C | 531 °F | ISO 75-2/Af · 1.80 MPa · Reference: Solvay Amodel AS-1133 HS, PPA with 33% glass fiber (2010-11-02) |
| Melting Temperature | 310 °C | 590 °F | ISO 11357 · Reference: Solvay Amodel AS-1133 HS, PPA with 33% glass fiber (2010-11-02) |
| Flammability | HB (UL94) | HB (UL94) | UL 94 · 0.125 in · Reference: Solvay Amodel AS-1133 HS, PPA with 33% glass fiber (2010-11-02) |
Material family ranges — selection reference
| Property | Family reference |
|---|---|
| Material class | High-performance plastic |
| Density (g/cm³) | 1.15–1.45 |
| Tensile strength (MPa) | 90–230 |
| Elongation at break (%) | 2–30 |
| Elastic modulus (GPa) | 3–13 |
| Hardness | R120–R125 |
| Temperature reference (°C) | HDT 100–290 |
Compatible manufacturing processes
Selection requirements
- Injection molding
Injection molding with thorough drying and high-temperature equipment; supplied references are around 320°C melt and at least 120°C mold temperature. Account for gate position, flow direction and dry/conditioned dimensions. Do not apply the 33% glass-filled values to unfilled PPA.
Advantages and considerations
Advantages
High strength, stiffness and creep resistance at elevated temperatures; lower moisture uptake than conventional nylon and good resistance to automotive fluids.
Material limitations
Cost and processing temperatures are higher than conventional nylon. Moisture still matters, and glass reinforcement produces direction-dependent properties and shrinkage.
How Aria supports your project
Help choosing a material
Compare materials for the loads, temperature and environment your part will face.
Design feedback before production
We review tool access, geometry and material choice before manufacturing.
Inspection to your drawing
Dimensional checks and inspection reports for the critical features on your drawing.
Compatible surface finishes
Selection requirements
- Laser engraving · Painting
Account for gate position, flow direction and dry/conditioned dimensions. Do not apply the 33% glass-filled values to unfilled PPA. Laser marking; limited coating options and laser welding with compatible grades.
Applications
Typical applications
Engine-area air and cooling parts, sensors, LED supports, electronic connectors and structural metal-replacement parts.
Design considerations
Processing options
Injection molding with thorough drying and high-temperature equipment; supplied references are around 320°C melt and at least 120°C mold temperature.
Finishing options
Laser marking; limited coating options and laser welding with compatible grades.
Grade and finish combinations
Account for gate position, flow direction and dry/conditioned dimensions. Do not apply the 33% glass-filled values to unfilled PPA.
Color and grade options
Natural light brown with reinforcement. Black and grade-dependent custom colors.
