Advantages
High strength-to-weight ratio, corrosion resistance and nonmagnetic behavior. Suitability for medical contact depends on the specified grade and documentation.
Titanium

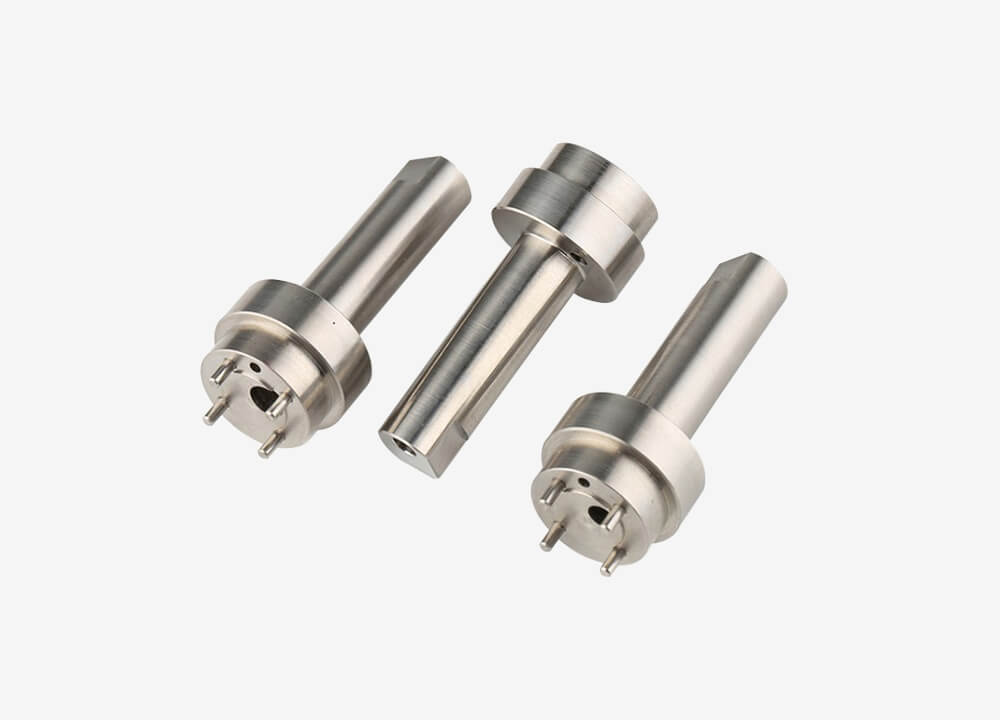

Titanium alloys combine low weight and corrosion resistance for demanding components.
Keep the specified grade with the critical features
Bring Aria the titanium grade, material condition and documentation required for your component, alongside its drawing. We help you review machining, surface requirements and inspection as one brief. The property values below identify their grade and condition so you can compare them against the specification for your component.
Material options
| Property | Details |
|---|---|
| Colors | Silver-gray, Custom anodized colors |
| Special properties | Grade 2 commercially pure titanium, Grade 23 ELI and aged Grade 5 STA are distinct options. Colored anodizing uses an oxide film rather than dye. |
Detailed values describe Ti-6Al-4V Grade 5, annealed. Family ranges are broader selection references and may include different grades or reinforcement levels. Confirm the selected grade, condition and test method for your part. Melting temperature is not a working-temperature limit; use the mill certificate for the specified alloy and temper.
Material properties
| Property | Metric | Imperial | Test method / conditions |
|---|---|---|---|
| Density | 4.43 g/cm³ | 0.160 lb/in³ | ASTM B348 · Annealed · Reference: Ti-6Al-4V Grade 5, annealed |
| Tensile Strength UTS | 950 MPa | 138,000 psi | ASTM B348 · Annealed · Reference: Ti-6Al-4V Grade 5, annealed |
| Yield Strength | 880 MPa | 128,000 psi | ASTM B348 · Annealed, 0.2% offset · Reference: Ti-6Al-4V Grade 5, annealed |
| Elongation | 14 % | 14 % | ASTM B348 · Annealed · Reference: Ti-6Al-4V Grade 5, annealed |
| Hardness | 334 HB / 36 HRC - | 334 HB / 36 HRC - | Annealed · Reference: Ti-6Al-4V Grade 5, annealed |
| Elastic Modulus | 114 GPa | 16.5×10⁶ psi | Reference: Ti-6Al-4V Grade 5, annealed |
| Thermal Conductivity | 6.7 W/m·K | 3.9 BTU/h·ft·°F | Room temperature · Reference: Ti-6Al-4V Grade 5, annealed |
| CTE | 8.6 µm/m·K | 4.8 µin/in·°F | Reference: Ti-6Al-4V Grade 5, annealed |
| Specific Heat | 526 J/kg·K | 0.13 BTU/lb·°F | Reference: Ti-6Al-4V Grade 5, annealed |
| Melting Range | 1604~1660 °C | 2920~3020 °F | Solidus–liquidus · Reference: Ti-6Al-4V Grade 5, annealed |
| Beta Transus | ~995 °C | ~1820 °F | Reference: Ti-6Al-4V Grade 5, annealed |
Material family ranges — selection reference
| Property | Family reference |
|---|---|
| Material class | Titanium alloy |
| Density (g/cm³) | 4.4–4.5 |
| Tensile strength (MPa) | 240–1100 |
| Elongation at break (%) | 10–25 |
| Elastic modulus (GPa) | 100–120 |
| Hardness | HB 200–380 |
| Temperature reference (°C) | Melting point 1600–1670 |
Product standards and grade references
| Standard or designation | Scope and selection notes |
|---|---|
| ASTM B348 / B348M | Titanium and titanium-alloy bars and billets; specify the grade. |
| AMS 4928 | Annealed Ti-6Al-4V bars, wire, forgings, rings and drawn shapes. |
| Ti-6Al-4V designation references | ASTM Grade 5 / UNS R56400; GB TC4; EN 3.7165. Check the governing specification, oxygen limits, condition and certification. |
| Before ordering | Grade names listed for comparison are not a blanket equivalence declaration. Agree the product standard, edition, delivery condition and required certificate before approving a substitution. |
Compatible manufacturing processes
Selection requirements
- CNC Milling Services
CNC Milling Services: CNC milling and turning with sharp appropriate tools, controlled cutting speed/feed and ample cooling. Avoid chip buildup and repeatedly cutting work-hardened surfaces. Control chip ignition hazards and thin-wall deflection. Specify grade, product form and heat treatment; do not transfer annealed Grade 5 properties to other titanium grades. 3-axis milling, 4-axis milling, 5-axis milling: Use a machinable stock grade; geometry, workholding and material condition determine feasibility.
- Precision CNC machining
CNC Milling Services, CNC turning: CNC milling and turning with sharp appropriate tools, controlled cutting speed/feed and ample cooling. Avoid chip buildup and repeatedly cutting work-hardened surfaces. Control chip ignition hazards and thin-wall deflection. Specify grade, product form and heat treatment; do not transfer annealed Grade 5 properties to other titanium grades. 3-axis milling, 4-axis milling, 5-axis milling, Cylindrical Turning, Boring, Threading, Grooving: Use a machinable stock grade; geometry, workholding and material condition determine feasibility. Wire EDM, Sinker EDM, EDM hole drilling: The workpiece must be electrically conductive. Confirm electrode access and any surface removal after EDM.
- CNC turning
CNC turning: CNC milling and turning with sharp appropriate tools, controlled cutting speed/feed and ample cooling. Avoid chip buildup and repeatedly cutting work-hardened surfaces. Control chip ignition hazards and thin-wall deflection. Specify grade, product form and heat treatment; do not transfer annealed Grade 5 properties to other titanium grades. Cylindrical Turning, Boring, Threading, Grooving: Use a machinable stock grade; geometry, workholding and material condition determine feasibility.
- EDM machining
The workpiece must be electrically conductive. Confirm electrode access and any surface removal after EDM.
Advantages and considerations
Material limitations
High cost, low thermal conductivity and challenging machining. Low elastic modulus can allow thin-wall deflection; sliding contacts can gall and chips require careful control.
How Aria supports your project
Help choosing a material
Compare materials for the loads, temperature and environment your part will face.
Design feedback before production
We review tool access, geometry and material choice before manufacturing.
Inspection to your drawing
Dimensional checks and inspection reports for the critical features on your drawing.
Compatible surface finishes
Selection requirements
- Anodizing · Passivation · Sandblasting
Control chip ignition hazards and thin-wall deflection. Specify grade, product form and heat treatment; do not transfer annealed Grade 5 properties to other titanium grades. Colored anodizing, blasting, polishing and qualified passivation. Sliding contacts may need a suitable nitriding or oxidation treatment.
- As machined · Bead blasting · Painting · Powder coating
Select preparation and coating system for the alloy, surface condition and functional requirements.
Applications
Typical applications
Aerospace structures, selected medical devices, premium electronics, motorsport and sporting components, and corrosive marine/chemical environments.
Design considerations
Processing options
CNC milling and turning with sharp appropriate tools, controlled cutting speed/feed and ample cooling. Avoid chip buildup and repeatedly cutting work-hardened surfaces.
Finishing options
Colored anodizing, blasting, polishing and qualified passivation. Sliding contacts may need a suitable nitriding or oxidation treatment.
Grade and finish combinations
Control chip ignition hazards and thin-wall deflection. Specify grade, product form and heat treatment; do not transfer annealed Grade 5 properties to other titanium grades.
Color and grade options
Natural silver-gray. Anodized oxide colors including blue, purple and gold. Blasted matte or polished surfaces.
Elevated-temperature selection
TIMET describes Ti-6Al-4V as retaining useful properties up to about 350°C, with performance affected by microstructure and thermomechanical history. This is a grade reference, not a universal allowable service temperature. For sustained heat, specify load, exposure duration, heat treatment and acceptable creep or fatigue performance before approving the material.
